1. Basic Chemistry and Crystallographic Style of Boron Carbide
1.1 Molecular Structure and Architectural Complexity
(Boron Carbide Ceramic)
Boron carbide (B FOUR C) stands as one of one of the most interesting and technically crucial ceramic materials because of its one-of-a-kind combination of extreme hardness, low density, and exceptional neutron absorption capacity.
Chemically, it is a non-stoichiometric compound primarily made up of boron and carbon atoms, with an idyllic formula of B ₄ C, though its actual structure can range from B FOUR C to B ₁₀. FIVE C, mirroring a wide homogeneity range governed by the alternative devices within its complicated crystal lattice.
The crystal structure of boron carbide comes from the rhombohedral system (room team R3̄m), identified by a three-dimensional network of 12-atom icosahedra– clusters of boron atoms– linked by straight C-B-C or C-C chains along the trigonal axis.
These icosahedra, each including 11 boron atoms and 1 carbon atom (B ₁₁ C), are covalently bonded with exceptionally solid B– B, B– C, and C– C bonds, adding to its amazing mechanical rigidity and thermal stability.
The visibility of these polyhedral devices and interstitial chains presents structural anisotropy and intrinsic problems, which influence both the mechanical habits and digital buildings of the material.
Unlike easier ceramics such as alumina or silicon carbide, boron carbide’s atomic architecture allows for significant configurational versatility, making it possible for flaw development and cost distribution that influence its efficiency under stress and irradiation.
1.2 Physical and Digital Qualities Developing from Atomic Bonding
The covalent bonding network in boron carbide results in one of the highest possible well-known firmness values among synthetic products– second only to diamond and cubic boron nitride– commonly ranging from 30 to 38 GPa on the Vickers firmness scale.
Its thickness is remarkably reduced (~ 2.52 g/cm THREE), making it about 30% lighter than alumina and nearly 70% lighter than steel, an essential advantage in weight-sensitive applications such as personal armor and aerospace elements.
Boron carbide displays excellent chemical inertness, resisting attack by the majority of acids and antacids at space temperature, although it can oxidize above 450 ° C in air, developing boric oxide (B TWO O THREE) and carbon dioxide, which may endanger structural stability in high-temperature oxidative settings.
It possesses a wide bandgap (~ 2.1 eV), categorizing it as a semiconductor with prospective applications in high-temperature electronic devices and radiation detectors.
Moreover, its high Seebeck coefficient and low thermal conductivity make it a prospect for thermoelectric power conversion, especially in severe environments where conventional materials fall short.

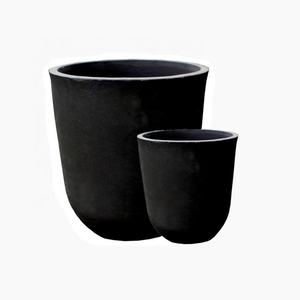

(Boron Carbide Ceramic)
The product also shows remarkable neutron absorption because of the high neutron capture cross-section of the ¹⁰ B isotope (about 3837 barns for thermal neutrons), rendering it indispensable in nuclear reactor control rods, securing, and spent gas storage space systems.
2. Synthesis, Handling, and Obstacles in Densification
2.1 Industrial Production and Powder Fabrication Methods
Boron carbide is primarily created with high-temperature carbothermal reduction of boric acid (H ₃ BO FOUR) or boron oxide (B ₂ O ₃) with carbon resources such as petroleum coke or charcoal in electrical arc heating systems operating over 2000 ° C.
The response proceeds as: 2B TWO O SIX + 7C → B FOUR C + 6CO, generating crude, angular powders that call for extensive milling to attain submicron particle sizes appropriate for ceramic processing.
Alternate synthesis routes consist of self-propagating high-temperature synthesis (SHS), laser-induced chemical vapor deposition (CVD), and plasma-assisted approaches, which supply better control over stoichiometry and bit morphology yet are less scalable for commercial use.
As a result of its severe firmness, grinding boron carbide right into fine powders is energy-intensive and prone to contamination from crushing media, demanding making use of boron carbide-lined mills or polymeric grinding aids to preserve pureness.
The resulting powders should be carefully classified and deagglomerated to make sure uniform packaging and reliable sintering.
2.2 Sintering Limitations and Advanced Combination Techniques
A major obstacle in boron carbide ceramic manufacture is its covalent bonding nature and reduced self-diffusion coefficient, which seriously restrict densification throughout standard pressureless sintering.
Even at temperatures coming close to 2200 ° C, pressureless sintering generally yields porcelains with 80– 90% of theoretical thickness, leaving residual porosity that weakens mechanical toughness and ballistic performance.
To overcome this, advanced densification methods such as hot pushing (HP) and warm isostatic pressing (HIP) are utilized.
Hot pressing uses uniaxial pressure (normally 30– 50 MPa) at temperature levels between 2100 ° C and 2300 ° C, advertising bit reformation and plastic deformation, making it possible for densities going beyond 95%.
HIP even more boosts densification by applying isostatic gas pressure (100– 200 MPa) after encapsulation, eliminating shut pores and accomplishing near-full density with enhanced fracture durability.
Additives such as carbon, silicon, or transition metal borides (e.g., TiB ₂, CrB ₂) are often introduced in tiny quantities to improve sinterability and prevent grain growth, though they might a little lower solidity or neutron absorption efficiency.
Despite these advancements, grain boundary weakness and inherent brittleness continue to be persistent difficulties, especially under vibrant packing conditions.
3. Mechanical Actions and Performance Under Extreme Loading Issues
3.1 Ballistic Resistance and Failure Mechanisms
Boron carbide is extensively identified as a premier product for light-weight ballistic security in body shield, lorry plating, and aircraft shielding.
Its high solidity enables it to effectively wear down and deform inbound projectiles such as armor-piercing bullets and pieces, dissipating kinetic power through systems including fracture, microcracking, and localized phase improvement.
Nevertheless, boron carbide displays a phenomenon referred to as “amorphization under shock,” where, under high-velocity influence (usually > 1.8 km/s), the crystalline framework breaks down right into a disordered, amorphous stage that does not have load-bearing capability, bring about catastrophic failure.
This pressure-induced amorphization, observed by means of in-situ X-ray diffraction and TEM research studies, is credited to the malfunction of icosahedral devices and C-B-C chains under extreme shear anxiety.
Efforts to alleviate this consist of grain refinement, composite design (e.g., B ₄ C-SiC), and surface area layer with pliable metals to delay crack propagation and include fragmentation.
3.2 Put On Resistance and Commercial Applications
Beyond protection, boron carbide’s abrasion resistance makes it excellent for industrial applications involving extreme wear, such as sandblasting nozzles, water jet cutting tips, and grinding media.
Its firmness substantially exceeds that of tungsten carbide and alumina, causing extended service life and decreased maintenance prices in high-throughput manufacturing environments.
Components made from boron carbide can run under high-pressure abrasive flows without fast degradation, although care should be required to prevent thermal shock and tensile tensions during procedure.
Its use in nuclear settings also includes wear-resistant components in fuel handling systems, where mechanical durability and neutron absorption are both called for.
4. Strategic Applications in Nuclear, Aerospace, and Emerging Technologies
4.1 Neutron Absorption and Radiation Protecting Equipments
Among one of the most vital non-military applications of boron carbide is in atomic energy, where it works as a neutron-absorbing product in control rods, shutdown pellets, and radiation shielding structures.
As a result of the high abundance of the ¹⁰ B isotope (naturally ~ 20%, yet can be improved to > 90%), boron carbide effectively catches thermal neutrons through the ¹⁰ B(n, α)⁷ Li response, creating alpha particles and lithium ions that are easily contained within the material.
This reaction is non-radioactive and generates marginal long-lived byproducts, making boron carbide safer and more steady than alternatives like cadmium or hafnium.
It is utilized in pressurized water activators (PWRs), boiling water reactors (BWRs), and study activators, typically in the form of sintered pellets, dressed tubes, or composite panels.
Its stability under neutron irradiation and capability to maintain fission products improve activator security and functional long life.
4.2 Aerospace, Thermoelectrics, and Future Material Frontiers
In aerospace, boron carbide is being explored for use in hypersonic vehicle leading sides, where its high melting factor (~ 2450 ° C), low thickness, and thermal shock resistance offer benefits over metallic alloys.
Its potential in thermoelectric tools stems from its high Seebeck coefficient and low thermal conductivity, making it possible for straight conversion of waste warm right into power in extreme environments such as deep-space probes or nuclear-powered systems.
Research study is additionally underway to develop boron carbide-based composites with carbon nanotubes or graphene to boost strength and electrical conductivity for multifunctional structural electronics.
Additionally, its semiconductor properties are being leveraged in radiation-hardened sensors and detectors for space and nuclear applications.
In summary, boron carbide porcelains stand for a foundation product at the intersection of extreme mechanical performance, nuclear engineering, and advanced production.
Its unique combination of ultra-high firmness, low thickness, and neutron absorption ability makes it irreplaceable in defense and nuclear innovations, while continuous research study continues to increase its energy right into aerospace, power conversion, and next-generation compounds.
As refining strategies enhance and brand-new composite styles arise, boron carbide will certainly remain at the center of products technology for the most demanding technical challenges.
