1. Make-up and Structural Residences of Fused Quartz
1.1 Amorphous Network and Thermal Stability

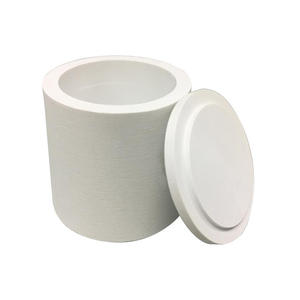

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from fused silica, an artificial form of silicon dioxide (SiO ₂) originated from the melting of all-natural quartz crystals at temperatures exceeding 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys outstanding thermal shock resistance and dimensional security under quick temperature level adjustments.
This disordered atomic structure stops cleavage along crystallographic planes, making merged silica less vulnerable to cracking throughout thermal biking compared to polycrystalline ceramics.
The material exhibits a low coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among engineering products, enabling it to stand up to severe thermal slopes without fracturing– a vital property in semiconductor and solar battery production.
Integrated silica additionally preserves excellent chemical inertness against a lot of acids, molten steels, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending on purity and OH content) enables sustained operation at elevated temperature levels needed for crystal growth and steel refining procedures.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is highly based on chemical purity, especially the focus of metallic impurities such as iron, sodium, potassium, aluminum, and titanium.
Also trace quantities (parts per million level) of these pollutants can move right into liquified silicon throughout crystal development, weakening the electric buildings of the resulting semiconductor material.
High-purity grades made use of in electronics manufacturing usually include over 99.95% SiO TWO, with alkali metal oxides restricted to much less than 10 ppm and change metals listed below 1 ppm.
Pollutants originate from raw quartz feedstock or handling tools and are lessened through mindful option of mineral resources and filtration strategies like acid leaching and flotation protection.
Additionally, the hydroxyl (OH) material in fused silica influences its thermomechanical behavior; high-OH types provide far better UV transmission however reduced thermal security, while low-OH versions are preferred for high-temperature applications due to minimized bubble development.

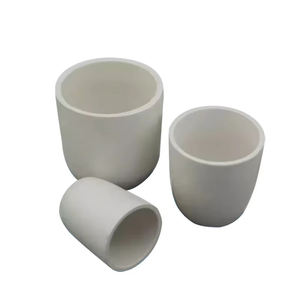

( Quartz Crucibles)
2. Production Process and Microstructural Design
2.1 Electrofusion and Developing Methods
Quartz crucibles are mostly generated via electrofusion, a procedure in which high-purity quartz powder is fed right into a turning graphite mold and mildew within an electric arc heating system.
An electric arc created in between carbon electrodes thaws the quartz bits, which strengthen layer by layer to develop a smooth, dense crucible shape.
This approach produces a fine-grained, uniform microstructure with very little bubbles and striae, vital for consistent warmth distribution and mechanical stability.
Different techniques such as plasma combination and flame blend are used for specialized applications requiring ultra-low contamination or specific wall density profiles.
After casting, the crucibles go through controlled air conditioning (annealing) to relieve interior anxieties and prevent spontaneous cracking during service.
Surface completing, including grinding and brightening, makes sure dimensional accuracy and lowers nucleation websites for unwanted crystallization throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A defining function of modern quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted inner layer framework.
Throughout production, the inner surface is usually treated to advertise the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first heating.
This cristobalite layer acts as a diffusion obstacle, decreasing direct interaction between liquified silicon and the underlying integrated silica, consequently lessening oxygen and metallic contamination.
Furthermore, the presence of this crystalline phase boosts opacity, boosting infrared radiation absorption and promoting even more uniform temperature level distribution within the thaw.
Crucible developers very carefully balance the thickness and continuity of this layer to prevent spalling or splitting due to quantity changes during stage changes.
3. Practical Efficiency in High-Temperature Applications
3.1 Duty in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, functioning as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon held in a quartz crucible and slowly drew up while revolving, enabling single-crystal ingots to create.
Although the crucible does not directly speak to the growing crystal, interactions between liquified silicon and SiO ₂ walls bring about oxygen dissolution right into the melt, which can impact service provider life time and mechanical stamina in ended up wafers.
In DS procedures for photovoltaic-grade silicon, large quartz crucibles make it possible for the controlled cooling of hundreds of kilograms of molten silicon right into block-shaped ingots.
Here, layers such as silicon nitride (Si two N ₄) are related to the inner surface area to avoid attachment and facilitate very easy release of the strengthened silicon block after cooling.
3.2 Deterioration Mechanisms and Service Life Limitations
Regardless of their toughness, quartz crucibles deteriorate during duplicated high-temperature cycles because of several related systems.
Thick circulation or deformation happens at long term exposure over 1400 ° C, bring about wall thinning and loss of geometric stability.
Re-crystallization of integrated silica into cristobalite generates internal stress and anxieties due to quantity development, potentially triggering cracks or spallation that infect the melt.
Chemical disintegration arises from reduction responses between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating unpredictable silicon monoxide that escapes and damages the crucible wall surface.
Bubble development, driven by trapped gases or OH teams, additionally compromises architectural stamina and thermal conductivity.
These degradation paths restrict the number of reuse cycles and require accurate procedure control to take full advantage of crucible life-span and product return.
4. Emerging Technologies and Technological Adaptations
4.1 Coatings and Composite Adjustments
To enhance performance and sturdiness, progressed quartz crucibles incorporate practical coverings and composite structures.
Silicon-based anti-sticking layers and doped silica coatings enhance launch features and reduce oxygen outgassing during melting.
Some producers integrate zirconia (ZrO ₂) particles right into the crucible wall surface to enhance mechanical stamina and resistance to devitrification.
Research is recurring right into fully transparent or gradient-structured crucibles developed to enhance induction heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Difficulties
With increasing need from the semiconductor and photovoltaic or pv industries, lasting use of quartz crucibles has come to be a concern.
Spent crucibles infected with silicon deposit are challenging to reuse as a result of cross-contamination threats, causing considerable waste generation.
Initiatives focus on establishing recyclable crucible linings, boosted cleaning protocols, and closed-loop recycling systems to recuperate high-purity silica for secondary applications.
As gadget effectiveness require ever-higher material pureness, the function of quartz crucibles will continue to progress through advancement in products science and process engineering.
In recap, quartz crucibles stand for an important user interface between resources and high-performance digital items.
Their special mix of pureness, thermal resilience, and architectural style makes it possible for the manufacture of silicon-based technologies that power contemporary computer and renewable resource systems.
