1. Basic Make-up and Structural Design of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Product Course

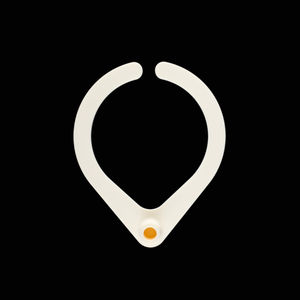

(Transparent Ceramics)
Quartz porcelains, additionally known as merged quartz or integrated silica porcelains, are advanced inorganic products derived from high-purity crystalline quartz (SiO ₂) that go through controlled melting and loan consolidation to form a thick, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike conventional ceramics such as alumina or zirconia, which are polycrystalline and made up of multiple phases, quartz porcelains are primarily made up of silicon dioxide in a network of tetrahedrally worked with SiO ₄ devices, using phenomenal chemical pureness– typically going beyond 99.9% SiO TWO.
The difference in between fused quartz and quartz ceramics hinges on processing: while merged quartz is commonly a totally amorphous glass formed by rapid air conditioning of liquified silica, quartz porcelains may include controlled formation (devitrification) or sintering of fine quartz powders to achieve a fine-grained polycrystalline or glass-ceramic microstructure with boosted mechanical effectiveness.
This hybrid technique incorporates the thermal and chemical security of integrated silica with improved fracture durability and dimensional stability under mechanical load.
1.2 Thermal and Chemical Stability Devices
The remarkable efficiency of quartz porcelains in extreme settings originates from the strong covalent Si– O bonds that create a three-dimensional network with high bond power (~ 452 kJ/mol), providing impressive resistance to thermal deterioration and chemical assault.
These products display an extremely reduced coefficient of thermal growth– around 0.55 × 10 ⁻⁶/ K over the range 20– 300 ° C– making them very resistant to thermal shock, an essential attribute in applications including fast temperature biking.
They keep structural stability from cryogenic temperature levels up to 1200 ° C in air, and even higher in inert atmospheres, before softening begins around 1600 ° C.
Quartz ceramics are inert to the majority of acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the stability of the SiO ₂ network, although they are at risk to attack by hydrofluoric acid and solid antacid at elevated temperature levels.
This chemical durability, combined with high electrical resistivity and ultraviolet (UV) transparency, makes them perfect for use in semiconductor handling, high-temperature heating systems, and optical systems exposed to harsh problems.
2. Production Processes and Microstructural Control

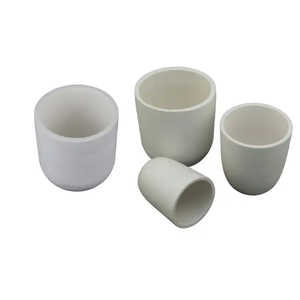

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The manufacturing of quartz porcelains includes advanced thermal processing methods created to protect purity while achieving wanted density and microstructure.
One common approach is electric arc melting of high-purity quartz sand, followed by regulated cooling to create merged quartz ingots, which can then be machined right into parts.
For sintered quartz ceramics, submicron quartz powders are compressed by means of isostatic pushing and sintered at temperature levels in between 1100 ° C and 1400 ° C, often with marginal additives to promote densification without causing extreme grain growth or stage change.
An important difficulty in processing is staying clear of devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite phases– which can endanger thermal shock resistance due to volume modifications during phase transitions.
Manufacturers use exact temperature level control, quick air conditioning cycles, and dopants such as boron or titanium to reduce unwanted formation and maintain a secure amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Fabrication
Recent advancements in ceramic additive production (AM), especially stereolithography (SLA) and binder jetting, have actually allowed the fabrication of complicated quartz ceramic components with high geometric accuracy.
In these procedures, silica nanoparticles are suspended in a photosensitive material or precisely bound layer-by-layer, adhered to by debinding and high-temperature sintering to attain full densification.
This strategy decreases product waste and allows for the production of elaborate geometries– such as fluidic networks, optical dental caries, or warm exchanger aspects– that are challenging or impossible to accomplish with conventional machining.
Post-processing strategies, including chemical vapor infiltration (CVI) or sol-gel layer, are occasionally put on secure surface porosity and boost mechanical and ecological durability.
These advancements are expanding the application extent of quartz ceramics into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and tailored high-temperature components.
3. Practical Characteristics and Efficiency in Extreme Environments
3.1 Optical Openness and Dielectric Habits
Quartz porcelains exhibit distinct optical residential properties, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them vital in UV lithography, laser systems, and space-based optics.
This transparency emerges from the lack of electronic bandgap shifts in the UV-visible array and marginal spreading due to homogeneity and reduced porosity.
On top of that, they possess superb dielectric properties, with a reduced dielectric constant (~ 3.8 at 1 MHz) and minimal dielectric loss, allowing their usage as shielding components in high-frequency and high-power electronic systems, such as radar waveguides and plasma reactors.
Their capacity to maintain electrical insulation at elevated temperature levels better boosts dependability sought after electrical settings.
3.2 Mechanical Habits and Long-Term Toughness
Regardless of their high brittleness– a common characteristic among porcelains– quartz ceramics demonstrate great mechanical toughness (flexural strength as much as 100 MPa) and outstanding creep resistance at heats.
Their firmness (around 5.5– 6.5 on the Mohs range) gives resistance to surface area abrasion, although care must be taken throughout handling to prevent damaging or fracture breeding from surface area defects.
Environmental toughness is another essential benefit: quartz porcelains do not outgas significantly in vacuum cleaner, resist radiation damage, and maintain dimensional stability over prolonged direct exposure to thermal cycling and chemical atmospheres.
This makes them favored materials in semiconductor manufacture chambers, aerospace sensors, and nuclear instrumentation where contamination and failure must be decreased.
4. Industrial, Scientific, and Emerging Technical Applications
4.1 Semiconductor and Photovoltaic Manufacturing Equipments
In the semiconductor sector, quartz ceramics are ubiquitous in wafer processing devices, including heating system tubes, bell jars, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their pureness avoids metal contamination of silicon wafers, while their thermal security guarantees uniform temperature level circulation during high-temperature handling actions.
In solar production, quartz elements are made use of in diffusion heaters and annealing systems for solar cell production, where regular thermal profiles and chemical inertness are necessary for high yield and performance.
The demand for larger wafers and greater throughput has actually driven the growth of ultra-large quartz ceramic frameworks with boosted homogeneity and lowered defect thickness.
4.2 Aerospace, Defense, and Quantum Technology Combination
Beyond industrial handling, quartz ceramics are used in aerospace applications such as missile guidance windows, infrared domes, and re-entry lorry elements because of their capacity to hold up against severe thermal slopes and aerodynamic stress and anxiety.
In defense systems, their transparency to radar and microwave regularities makes them suitable for radomes and sensing unit housings.
Extra just recently, quartz porcelains have found functions in quantum innovations, where ultra-low thermal expansion and high vacuum cleaner compatibility are needed for precision optical dental caries, atomic traps, and superconducting qubit units.
Their ability to minimize thermal drift makes sure long comprehensibility times and high dimension precision in quantum computer and sensing platforms.
In recap, quartz ceramics represent a class of high-performance materials that bridge the void between traditional porcelains and specialty glasses.
Their unrivaled combination of thermal security, chemical inertness, optical transparency, and electrical insulation enables modern technologies operating at the restrictions of temperature level, pureness, and accuracy.
As making techniques develop and require expands for products with the ability of standing up to increasingly extreme conditions, quartz porcelains will continue to play a foundational function ahead of time semiconductor, energy, aerospace, and quantum systems.
