Check out the extensive overview to oil submersed transformers, including oil immersed power transformers and oil submersed circulation transformers. Discover their working concepts, kinds, benefits, and evolving role in clever grids and renewable resource.
1. Intro to Oil Submersed Transformers
In the elaborate internet of our contemporary electric grid, transformers play a crucial function, calmly tipping voltage backwards and forwards to make sure electrical power can be sent successfully over long distances and dispersed securely to our homes and industries. Amongst the numerous types readily available, the oil immersed transformer stands as a testimony to tried and tested reliability and toughness. For decades, these workhorses have formed the foundation of power systems worldwide.
An oil submersed transformer is a sort of electrical transformer that makes use of a customized insulating oil as both a coolant and a protecting medium. This style is predominantly utilized for medium to high-power applications, making it a keystone of electrical infrastructure. This guide delves deep into the world of oil immersed power transformers and oil immersed circulation transformers, exploring their technology, applications, and their evolving duty in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil submersed transformer contains a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank filled with insulating oil. The main feature of the oil is twofold:
1. Insulation: The oil has high dielectric stamina, successfully protecting the high-voltage windings from the transformer’s core and based tank. This prevents short circuits and electric breakdowns.
2. Cooling: As the transformer operates, the windings produce considerable warmth because of I ² R losses. The distributing oil absorbs this warmth, convects it to the transformer’s storage tank wall surfaces, and dissipates it into the bordering air. Bigger units usually feature radiators or fins to enhance the surface for much more efficient cooling.
This dual-purpose use oil makes the oil submersed transformer incredibly reliable and durable, capable of dealing with high loads and withstanding short-term overloads much better than several dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these systems are oil immersed transformers, they offer distinct functions within the power system network. Understanding the distinction is vital.
An oil immersed power transformer is a heavyweight, normally made use of in transmission networks at creating terminals and major substations. Their key function is to “step-up” the voltage created at the power plant to extremely high levels (e.g., 138 kV, 230 kV, 500 kV and over) for effective long-distance transmission, and to “step-down” the voltage at getting substations for further circulation. They are characterized by their very high power rankings (often going beyond 100 MVA), complicated building, and on-load faucet changers for voltage guideline.
An oil involved distribution transformer, on the other hand, carries out the final step in the power shipment chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it to the reduced voltages (e.g., 400/230 V) used by industrial and residential consumers. You frequently locate them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power rankings (normally up to 2,500 kVA), and are made for optimal performance at reduced, more constant loads.

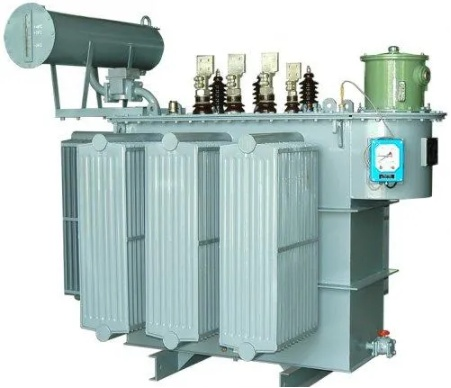

(Oil immersed power transformer)
2. Trick Benefits of Oil Immersed Transformers
The enduring appeal of the oil submersed transformer is not unintended. It supplies a suite of compelling advantages that make it the favored option for several requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The superior thermal ability of oil contrasted to air allows an oil submersed power transformer to take care of and dissipate warm far more properly. This converts to a greater overload capacity. Throughout periods of optimal power need, an oil submersed transformer can deal with short-lived overloads without enduring damages, a vital function for keeping grid security. The oil’s flow ensures even heat distribution, avoiding localized hot spots that can weaken insulation with time.
2.2 Boosted Insulation and Long Service Life
The combination of premium mineral oil and meticulously fertilized paper insulation creates a dielectric system of remarkable toughness. This durable insulation system safeguards the transformer from voltage surges and transients, contributing to a functional life-span that can extend to 30-40 years or more with proper upkeep. The secured tank also safeguards the internal parts from moisture, dust, and various other climatic impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil immersed transformer is usually one of the most cost-effective choice. The products utilized– mineral oil, steel tank, and copper/aluminum windings– use a positive equilibrium of performance and price. The high efficiency of these transformers, specifically at their rated load, results in reduced power losses over their life time, bring about substantial price financial savings for energy business and big industrial users.
3. Warm Topics and Future Trends
The globe of oil submersed transformers is not static. It is continuously evolving to meet brand-new difficulties and integrate with modern-day technologies.
3.1 Eco-friendly and Fire-Resistant Oils
Environmental and security worries are driving a substantial shift far from traditional mineral oil. The marketplace is rapidly taking on oil submersed transformers full of eco-friendly esters (synthetic or natural). These oils offer a greater fire factor (making them K-class fire-resistant), are less harmful, and are easily eco-friendly, significantly reducing the environmental influence in instance of a leakage. This trend is making oil immersed distribution transformers more secure for installment in city areas and ecologically sensitive locations.
3.2 Integration with Smart Grids and IoT
The contemporary oil immersed power transformer is ending up being an intelligent node in the wise grid. Sensing units are being integrated to check essential criteria in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Detecting fault gases created within the oil to anticipate incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperature levels.
Lots and Power Quality Tracking.
This data, sent through IoT (Web of Points) systems, allows anticipating upkeep, avoids unplanned interruptions, and enhances transformer utilization and life expectancy.
3.3 Sustaining the Renewable Energy Transition
The international promote renewables is producing new need for oil submersed transformers. Large solar ranches and wind power setups call for durable oil immersed power transformers to step up the created voltage to transmission levels. Furthermore, the intermittent nature of renewables areas greater tension on grid elements, and the tried and tested dependability and overload capability of oil immersed transformers make them optimal for this essential function.
4. Option and Upkeep Best Practices
Selecting the best transformer and keeping it appropriately is vital to a reputable power system.
4.1 How to Choose the Right Oil Immersed Transformer
Choosing in between an oil immersed power transformer and an oil submersed circulation transformer relies on the application. Trick factors to consider consist of:
1. Voltage Level and kVA Ranking: Match the transformer’s requirements to your system’s needs.
2. Application: Transmission substation, plant, or industrial circulation.
3. Area: Indoor vs. outside, ecological problems, and fire security regulations (which may affect the choice of insulating oil).
4. Effectiveness Specifications: Adhere to local efficiency criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Consider both the first capital expense and the complete price of ownership, consisting of losses.
(Oil immersed distribution transformer)
4.2 Essential Maintenance for Long Life
Aggressive upkeep is crucial for any oil immersed transformer. A thorough program must include:
1. Regular Oil Sampling and Screening: Periodic DGA and screening of dielectric strength and moisture material are one of the most reliable means to assess the health and wellness of the transformer.
2. Bushing and Insulation Examination: Aesthetic checks for splits, contamination, or leaks.
3. Tap Changer Upkeep: Regular examination and maintenance of on-load or off-load tap changers.
4. Keep it Clean and Dry: Making certain the container exterior, radiators, and rests are clean and practical.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and a common oil submersed circulation transformer, stays an irreplaceable part of our international power infrastructure. Its tested style, coupled with recurring advancements in shielding liquids and electronic surveillance, guarantees it will certainly continue to be a trustworthy, efficient, and intelligent service for powering our globe for decades to find. As we construct the grids of the future, integrating even more renewables and digital knowledge, the robust and versatile oil submersed transformer will unquestionably go to the heart of it.
