Bearings are commonly called the “joints of industry.” Getting the option right straight affects your tools’s dependability, service life, and upkeep costs. Numerous bearing failings do not originate from poor quality– they come from incorrect selections. Points like load calculation mistakes, neglecting speed restrictions, or selecting the incorrect lubrication approach. These tiny errors can trigger devices to break down early in its life span. This guide strolls you with the entire selection procedure, giving designers and procurement professionals a clear course from evaluating working problems to validating the appropriate bearing model.
Component One: What You Required to Know Prior To Starting
Before you open up any kind of bearing brochure, ask yourself one concern: Just what does this machine need the bearing to do? The answer lies in 5 essential locations:
1. Lots Attributes
Load is the number one consider birthing option. You require to identify 3 points:
Direction: Is it radial tons (perpendicular to the shaft), axial load (parallel to the shaft), or a combination of both?
Dimension: Is it light, modest, or heavy? Any effect lots?
Nature: Is the tons stable or changing? Exactly how commonly do impact tons take place and just how strong are they?
Take a belt conveyor for instance. The bearings at the drive end take on radial lots from belt tension, the weight of the belt and rollers, plus the shaft setting up. When calculating, you need to consider various operating problems– startup, normal running, braking– and utilize the worst-case scenario for your design.
2. Speed Problems
(bearings for steel mill)
Rate is another important element affecting birthing life. According to tiredness life concept, birthing life has an inverse connection with rate. For variable rate problems, you require to calculate the comparable speed. Take a rotary kiln assistance roller– its rate might range from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to obtain an equal value.
Something to watch out for: knowing just the maximum rate can screw up your lubrication technique. The lubricant you choose based on top speed might not form an appropriate oil film at lower speeds. Also, if your device has long idle periods, you ought to mention that– or else neighboring equipment resonances might create false brinelling damages.
3. Required Service Life
Birthing life span is generally expressed as L10h (the variety of hours that 90% of a bearing team will get to before exhaustion spalling appears). A typical error is going with an extremely lengthy life– when L10h surpasses 100,000 hours, the bearing dimension gets as well big. It comes to be tougher to lube, torque boosts, and it comes to be extra conscious minimal load. In the long run, it may fail for factors aside from exhaustion.
4. Area Restraints
You should recognize your offered room limits from the beginning– shaft size array, housing birthed size, axial size restrictions. As soon as you recognize the matching shaft diameter and available area, you can promptly narrow down your options.
5. Running Accuracy Demands
A lot of applications do simply fine with standard precision bearings. But for high-speed or high-precision equipment like equipment tool pins, you’ll require P5, P4, or perhaps higher grades. Just keep in mind that going for higher accuracy without a real requirement will drive up costs dramatically. Suit the quality to your actual needs.
Sequel: Matching Birthing Kinds to Working Conditions
When you have those criteria clear, the following step is to match the ideal bearing kind based upon lots instructions, size, rate, and imbalance resistance.
1. Tons Direction: Radial, Axial, or Integrated?
This is one of the most standard filter. It can point you to a couple of prospects as soon as possible:
When the axial-to-radial tons ratio (Fa/Fr) changes, your choice reasoning modifications also. At reduced proportions, select deep groove round bearings. At modest proportions, make use of small-contact-angle angular contact bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or take into consideration incorporating a drive bearing with a radial bearing.
( Radial)
2. Tons Size: Ball Bearings or Roller Bearings?
This is a classic option:
Light or moderate lots: Opt for sphere bearings (deep groove or angular contact). The factor get in touch with between balls and raceways gives reduced friction, making them ideal for medium to broadband.
Heavy or influence loads: You should use roller bearings (cylindrical, round, or taper). Line contact in between rollers and raceways provides much greater tons ability and far better influence resistance.
3. Rate: Ball Bearings for High Speed, Roller Bearings for Low
Normally talking, ball bearings have greater rate limitations than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings at the top of your listing. When you need the greatest feasible rate with pure radial tons, open deep groove sphere bearings are your best choice. For integrated tons at broadband, angular contact round bearings are the way to go.
Round roller bearings, taper roller bearings, and needle bearings have relatively reduced speed limits. They’re mainly suited for low-to-medium rate, heavy-load problems.
4. Misalignment Tolerance: Do You Required Self-Aligning?
This set commonly gets overlooked however it’s extremely crucial. You ought to consider self-aligning bearings when:
Bearing housing bores don’t line up well
The shaft isn’t stiff enough and bends throughout operation
The bearing period is long and thermal growth causes angular misalignment
You’re using separate split real estates (like pillow block bearings)
Spherical roller bearings and spherical ball bearings have scooped external ring raceways. This permits a specific amount of angular misalignment between the internal and external rings without harmful edge stress and anxiety. They can make up for both dynamic deflection and static installment errors.
On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have really restricted self-aligning ability. Also a small angular misalignment can cause tension focus at the roller finishes, resulting in high side pressures that considerably shorten birthing life. Deep groove sphere bearings do have some self-aligning capacity, but the permitted angle is tiny– exceeding it will certainly reduce life also.
5. Axial Growth Payment: Fixed End or Drifting End?
Lengthy shafts expand and contract with temperature level modifications during procedure. That means you require to set up your bearing plan with one fixed end and one drifting end.
NU and N collection cylindrical roller bearings have no flanges on the internal ring (or on one side). This allows the shaft step freely in the axial instructions relative to the real estate– making them ideal as floating-end bearings. NJ and NUP series can offer axial positioning in one or both instructions, so they work well as fixed-end bearings. This arrangement is very typical in gearboxes and electrical motors.
Part 3: BMB Line Of Product at a Glimpse

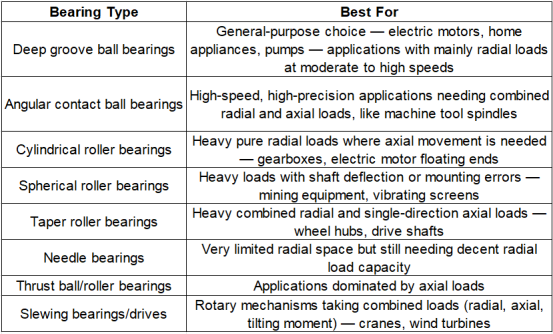

BMB uses a full range of industrial bearings, covering all the major types we have actually gone over. This quick reference table attaches the choice principles over directly to specific item classifications:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion accuracy (P0) helps the vast bulk of general machinery. For precision devices like machine tool spindles or aerospace elements, you’ll need P5 or greater. Tighter accuracy indicates tighter dimensional resistances and far better running accuracy– however additionally greater expenses.
2. Internal Clearance and Preload
Bearings require to maintain proper inner clearance after installation. Excessive clearance brings about resonance and noise. Insufficient, and thermal development can create the bearing to seize. In diplomatic immunities like machine device pins, preload (applying negative clearance) is utilized to enhance system rigidness and rotational precision.
3. Lubricating substance Option
Lubrication is a make-or-break factor for birthing life. Oil helps many moderate-speed and temperature level applications– it’s easy to secure and can run maintenance-free for extended periods. Oil (oil bath, oil mist, jet lubrication) is better for high-speed or high-temperature conditions, as it dissipates warmth better. When picking a lubricating substance, check the rate element (ndm value). Don’t just choose based on maximum rate– the oil you choose could not form an appropriate movie at reduced speeds.
4. Sealing Arrangements
Pick the seal kind based upon your atmosphere: contact seals keep dirt out well yet add some friction; non-contact seals benefit broadband yet supply less protection against contamination; open bearings rely upon external sealing systems.
Part Five: Life Estimation– From Theory to Technique

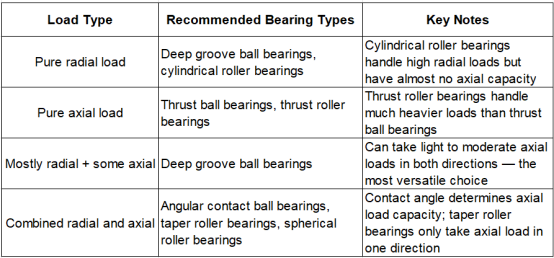

( or Combined Basic Filter Table)
At the end of the day, you require to validate whether your chosen bearing will actually satisfy the expected service life. This is where basic ranking life calculation can be found in.
The fundamental rating life L10 formula (ISO 281 requirement):
For ball bearings: L10 = (C/P) ³ × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: basic dynamic lots ranking (kN)– located in the item magazine
P: comparable dynamic load (kN)– takes both radial and axial loads into account
The comparable vibrant lots P is determined as: P = X · Fr + Y · Fa
Fr is the radial lots, Fa is the axial load
X and Y are coefficients that depend upon birthing type and the Fa/Fr ratio– check the magazine for these worths
For more demanding conditions, you can use change aspects: Ln = a1 × a2 × a3 × L10
a1 is the reliability factor (a1 = 1 for 90% dependability, regarding 0.21 for 99%)
a2 is the product variable (premium bearing steel can reach 1.5 to 2)
a3 is the operating problems factor (excellent lubrication and cleanliness can provide 2 to 3)
With this computation, engineers can confirm that the selected bearing meets the required life span. It additionally assists contrast several options and make data-driven choices.
This overview has strolled you via the complete choice path– from evaluating working problems, to matching the appropriate bearing kind, to confirming life expectancy. Recognizing and using this approach will certainly help you make precise, effective, and cost-efficient bearing choices across a large range of industrial applications.
