1. Material Principles and Architectural Characteristic
1.1 Crystal Chemistry and Polymorphism

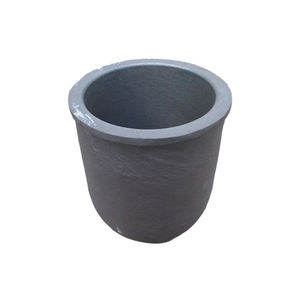

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral latticework, forming one of the most thermally and chemically robust products recognized.
It exists in over 250 polytypic kinds, with the 3C (cubic), 4H, and 6H hexagonal structures being most pertinent for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, give extraordinary solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is preferred as a result of its capacity to preserve structural stability under severe thermal slopes and corrosive molten settings.
Unlike oxide ceramics, SiC does not undergo turbulent stage transitions approximately its sublimation point (~ 2700 ° C), making it perfect for continual operation over 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying feature of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises consistent warm distribution and reduces thermal stress during rapid heating or air conditioning.
This home contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to cracking under thermal shock.
SiC likewise shows outstanding mechanical strength at raised temperature levels, keeping over 80% of its room-temperature flexural strength (up to 400 MPa) even at 1400 ° C.
Its low coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, a crucial factor in repeated cycling between ambient and operational temperatures.
Furthermore, SiC shows exceptional wear and abrasion resistance, guaranteeing lengthy service life in atmospheres entailing mechanical handling or rough thaw circulation.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Strategies
Industrial SiC crucibles are mostly made via pressureless sintering, reaction bonding, or hot pushing, each offering distinctive benefits in price, purity, and performance.
Pressureless sintering involves condensing fine SiC powder with sintering help such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert environment to achieve near-theoretical thickness.
This method yields high-purity, high-strength crucibles ideal for semiconductor and advanced alloy processing.
Reaction-bonded SiC (RBSC) is generated by infiltrating a porous carbon preform with molten silicon, which responds to develop β-SiC sitting, leading to a compound of SiC and recurring silicon.
While a little lower in thermal conductivity as a result of metal silicon incorporations, RBSC offers exceptional dimensional stability and lower manufacturing price, making it preferred for massive industrial usage.
Hot-pressed SiC, though more pricey, gives the highest possible density and purity, reserved for ultra-demanding applications such as single-crystal development.
2.2 Surface Top Quality and Geometric Precision
Post-sintering machining, including grinding and lapping, makes sure precise dimensional resistances and smooth internal surface areas that decrease nucleation websites and lower contamination danger.
Surface area roughness is very carefully regulated to prevent melt bond and facilitate simple release of solidified materials.
Crucible geometry– such as wall density, taper angle, and lower curvature– is enhanced to balance thermal mass, structural strength, and compatibility with heater burner.
Personalized styles accommodate details thaw quantities, heating accounts, and product sensitivity, guaranteeing optimal performance across diverse industrial procedures.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, confirms microstructural homogeneity and absence of defects like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Aggressive Atmospheres
SiC crucibles show remarkable resistance to chemical attack by molten steels, slags, and non-oxidizing salts, surpassing traditional graphite and oxide ceramics.
They are secure in contact with liquified light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution as a result of low interfacial power and development of safety surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles prevent metal contamination that can break down electronic buildings.
Nonetheless, under highly oxidizing conditions or in the presence of alkaline changes, SiC can oxidize to create silica (SiO TWO), which might respond additionally to create low-melting-point silicates.
Therefore, SiC is best suited for neutral or lowering environments, where its security is made the most of.
3.2 Limitations and Compatibility Considerations
Regardless of its robustness, SiC is not generally inert; it reacts with particular molten products, particularly iron-group steels (Fe, Ni, Co) at high temperatures through carburization and dissolution procedures.
In liquified steel processing, SiC crucibles degrade quickly and are consequently prevented.
Similarly, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, releasing carbon and creating silicides, restricting their usage in battery material synthesis or responsive steel casting.
For liquified glass and porcelains, SiC is generally compatible yet might introduce trace silicon right into extremely delicate optical or digital glasses.
Understanding these material-specific interactions is vital for choosing the proper crucible kind and making sure procedure pureness and crucible durability.
4. Industrial Applications and Technological Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are indispensable in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they stand up to prolonged exposure to molten silicon at ~ 1420 ° C.
Their thermal security guarantees uniform formation and minimizes dislocation thickness, straight affecting photovoltaic or pv effectiveness.
In foundries, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, using longer life span and reduced dross development compared to clay-graphite options.
They are additionally used in high-temperature lab for thermogravimetric evaluation, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic substances.
4.2 Future Patterns and Advanced Material Combination
Emerging applications consist of making use of SiC crucibles in next-generation nuclear materials testing and molten salt activators, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O FOUR) are being related to SiC surface areas to better improve chemical inertness and stop silicon diffusion in ultra-high-purity processes.
Additive production of SiC parts making use of binder jetting or stereolithography is under growth, promising complex geometries and quick prototyping for specialized crucible styles.
As need expands for energy-efficient, sturdy, and contamination-free high-temperature processing, silicon carbide crucibles will remain a keystone technology in advanced materials manufacturing.
In conclusion, silicon carbide crucibles stand for an important making it possible for component in high-temperature commercial and scientific processes.
Their unparalleled mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of choice for applications where efficiency and integrity are paramount.
