Introduction to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually gotten prevalent acknowledgment for its extraordinary thermal conductivity, electric insulation, and mechanical security at raised temperatures. With a hexagonal wurtzite crystal structure, AlN shows an unique combination of homes that make it the most perfect substratum material for applications in electronics, optoelectronics, power modules, and high-temperature environments. Its ability to efficiently dissipate warmth while keeping outstanding dielectric toughness positions AlN as a superior alternative to typical ceramic substrates such as alumina and beryllium oxide. This post checks out the fundamental attributes of light weight aluminum nitride ceramics, delves into fabrication strategies, and highlights its crucial roles across advanced technical domains.

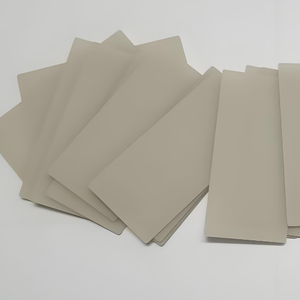

(Aluminum Nitride Ceramics)
Crystal Structure and Fundamental Residence
The performance of aluminum nitride as a substrate material is largely determined by its crystalline structure and inherent physical residential properties. AlN takes on a wurtzite-type lattice composed of rotating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly going beyond 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth substantially surpasses those of other widely used ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a large bandgap of approximately 6.2 eV, leading to superb electrical insulation residential or commercial properties even at high temperatures. It additionally shows low thermal expansion (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimum suit for semiconductor gadget packaging. Moreover, AlN exhibits high chemical inertness and resistance to thaw metals, improving its suitability for extreme environments. These mixed qualities establish AlN as a leading prospect for high-power electronic substratums and thermally handled systems.
Manufacture and Sintering Technologies
Producing high-quality aluminum nitride ceramics needs exact powder synthesis and sintering methods to achieve dense microstructures with very little pollutants. Due to its covalent bonding nature, AlN does not conveniently densify via traditional pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y TWO O TWO), calcium oxide (CaO), or rare planet components are normally contributed to advertise liquid-phase sintering and improve grain border diffusion.
The fabrication procedure normally begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen atmosphere to manufacture AlN powders. These powders are after that milled, formed via approaches like tape casting or injection molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pressing or spark plasma sintering (SPS) can additionally improve density and thermal conductivity by reducing porosity and promoting grain alignment. Advanced additive production methods are likewise being explored to fabricate complex-shaped AlN components with customized thermal administration capabilities.
Application in Digital Packaging and Power Modules
One of one of the most famous uses light weight aluminum nitride ceramics is in electronic packaging, particularly for high-power devices such as protected gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power densities increase in modern electronic devices, reliable warm dissipation becomes crucial to guarantee reliability and durability. AlN substrates supply an ideal remedy by integrating high thermal conductivity with exceptional electric isolation, stopping brief circuits and thermal runaway conditions.
In addition, AlN-based straight bonded copper (DBC) and active steel brazed (AMB) substratums are significantly employed in power component styles for electrical automobiles, renewable resource inverters, and commercial motor drives. Compared to traditional alumina or silicon nitride substrates, AlN provides much faster heat transfer and better compatibility with silicon chip coefficients of thermal expansion, thus reducing mechanical stress and enhancing total system performance. Continuous research study aims to enhance the bonding strength and metallization strategies on AlN surface areas to additional increase its application extent.
Usage in Optoelectronic and High-Temperature Devices
Past digital product packaging, aluminum nitride ceramics play a vital role in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal stability. AlN is extensively utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications needing sterilization, noticing, and optical interaction. Its broad bandgap and reduced absorption coefficient in the UV array make it an excellent candidate for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s capacity to operate reliably at temperatures going beyond 1000 ° C makes it ideal for use in sensing units, thermoelectric generators, and components revealed to extreme thermal tons. In aerospace and defense sectors, AlN-based sensing unit packages are employed in jet engine surveillance systems and high-temperature control units where standard products would certainly fall short. Constant developments in thin-film deposition and epitaxial growth techniques are increasing the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.

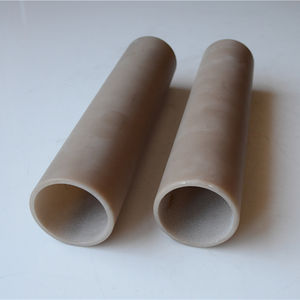

( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Integrity
A crucial consideration for any type of substrate product is its long-term integrity under functional stresses. Aluminum nitride shows premium ecological stability contrasted to numerous various other porcelains. It is extremely immune to rust from acids, alkalis, and molten metals, making sure longevity in hostile chemical environments. Nonetheless, AlN is at risk to hydrolysis when subjected to dampness at raised temperatures, which can degrade its surface area and minimize thermal efficiency.
To minimize this issue, protective coatings such as silicon nitride (Si ₃ N ₄), light weight aluminum oxide, or polymer-based encapsulation layers are typically put on enhance wetness resistance. Additionally, mindful sealing and product packaging approaches are carried out throughout device assembly to keep the integrity of AlN substratums throughout their life span. As environmental regulations come to be more strict, the safe nature of AlN likewise positions it as a preferred alternative to beryllium oxide, which poses wellness dangers during processing and disposal.
Conclusion
Light weight aluminum nitride ceramics represent a class of advanced materials uniquely fit to attend to the expanding needs for effective thermal management and electrical insulation in high-performance electronic and optoelectronic systems. Their remarkable thermal conductivity, chemical security, and compatibility with semiconductor technologies make them one of the most excellent substrate material for a variety of applications– from automotive power components to deep UV LEDs and high-temperature sensing units. As fabrication modern technologies continue to evolve and affordable production methods develop, the adoption of AlN substrates is anticipated to rise significantly, driving advancement in next-generation electronic and photonic tools.
