1. Material Qualities and Architectural Style
1.1 Make-up and Crystalline Phases of Alumina

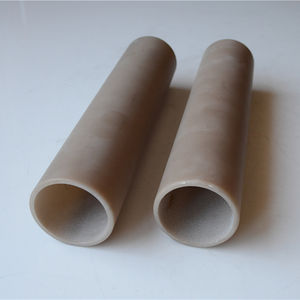

( Alumina Ceramic Tubes)
Alumina (Al ₂ O TWO) ceramic tubes are mostly made from high-purity aluminum oxide, with pureness levels generally ranging from 90% to 99.8%, relying on the desired application.
The dominant crystalline stage in fully dense, high-temperature sintered tubes is α-alumina (diamond), which exhibits a trigonal crystal framework and outstanding thermodynamic security.
This phase change from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs over 1100 ° C and results in a dense, interlocking microstructure that offers outstanding mechanical strength and chemical resistance.
Greater pureness grades (≥ 99.5%) optimize hardness, use resistance, and dielectric efficiency, while lower-purity formulations may incorporate additional phases like mullite or glassy grain limit stages to decrease expense or dressmaker thermal development.
The ability to control grain dimension, porosity, and stage structure throughout handling enables designers to adjust alumina tubes for particular functional demands throughout diverse commercial domains.
1.2 Mechanical, Thermal, and Electrical Properties
Alumina ceramic tubes exhibit a special combination of physical homes that make them important sought after design atmospheres.
With a Vickers hardness going beyond 1500 HV, they are extremely immune to abrasion and disintegration, surpassing most metals and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, making it possible for structural use under high mechanical tons, while flexural strength typically varies from 300 to 500 MPa, relying on thickness and surface area coating.
Thermally, alumina keeps security up to 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal expansion (~ 8 ppm/K), adding to outstanding thermal shock resistance when correctly designed.
Although its thermal conductivity (~ 30 W/(m · K)) is modest compared to steels or light weight aluminum nitride, it suffices for many high-temperature applications where electric insulation and structural integrity are focused on.
Electrically, alumina is a superior insulator with quantity resistivity > 10 ¹⁴ Ω · cm and high dielectric stamina (> 15 kV/mm), making it suitable for electrical feedthroughs, sensing unit real estates, and high-voltage insulation.

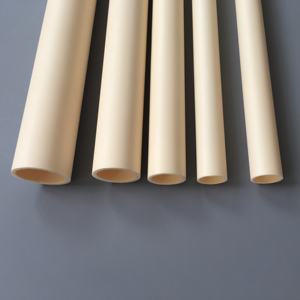

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Forming Strategies
The manufacturing of alumina ceramic tubes entails sophisticated creating techniques tailored to attain accurate measurements, wall thickness uniformity, and surface high quality.
Typical methods consist of extrusion, isostatic pushing, and slide casting, each suited to different dimension varieties and efficiency requirements.
Extrusion is widely made use of for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is forced with a die and cut to length prior to drying out and sintering.
For high-precision or thin-walled tubes, cool isostatic pressing (CIP) uses consistent pressure from all instructions to compact green bodies, reducing distortion and improving thickness homogeneity.
Slip casting, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is excellent for complicated or large-diameter geometries with variable wall density.
After creating, tubes go through mindful drying out to stop splitting, followed by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to accomplish full densification and dimensional security.
2.2 Finishing and Quality Assurance
Post-sintering operations such as centerless grinding, washing, and polishing are utilized to achieve limited tolerances, smooth surface area finishes, and exact internal and external sizes.
Resistances as limited as ± 0.01 mm are possible for important applications in semiconductor processing or analytical instrumentation.
Surface roughness can be minimized to Ra < 0.1 µm, decreasing bit trapping and boosting compatibility with ultra-high vacuum (UHV) or cleanroom atmospheres.
Non-destructive screening methods– consisting of ultrasonic examination, X-ray radiography, and dye penetrant screening– make certain structural integrity and absence of splits or gaps.
Dimensional width utilizing coordinate gauging machines (CMM) or laser scanning verifies conformity with style specifications, especially for custom-made or high-volume production runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among the most compelling advantages of alumina ceramic tubes is their ability to withstand extreme thermal and chemical problems where steels and polymers fall short.
They remain dimensionally stable and mechanically robust in continual service at temperatures over 1500 ° C, making them appropriate for heater liners, thermocouple defense sheaths, and glowing heating system tubes.
Their inertness to molten metals (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and lots of acids (except hydrofluoric and hot phosphoric acid) makes it possible for use in metallurgical and chemical processing equipment.
In oxidizing and reducing ambiences, alumina does not deteriorate or catalyze unwanted reactions, maintaining procedure pureness in semiconductor and glass production.
This chemical inertness likewise stops contamination in high-purity fluid dealing with systems, including those used in pharmaceutical and food processing markets.
3.2 Electric Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes function as insulating obstacles that preserve circuit honesty under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lamps, where they have ionized gases at temperature levels going beyond 1000 ° C while withstanding electrical potentials of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric home windows or gas distribution components, standing up to ion barrage and thermal cycling without splitting or outgassing.
Their low dielectric loss and high arc resistance stop electric monitoring and failure, making sure lengthy service life in switchgear and power transmission parts.
These buildings are crucial in preserving procedure stability and equipment reliability in sophisticated production and energy systems.
4. Industrial and Emerging Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are integral to a vast array of commercial processes that require longevity under extreme conditions.
In thermal processing, they serve as protective sheaths for thermocouples and heating elements in kilns, heating systems, and heat therapy equipment, shielding delicate elements from harsh atmospheres and mechanical wear.
In fluid handling, they deliver aggressive chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits fast home heating and cooling cycles without failing, a key advantage in cyclic commercial operations.
In glass manufacturing, alumina tubes assist liquified glass circulations and support developing equipment, withstanding erosion from thick, high-temperature melts.
4.2 Advanced Technologies and Future Combination
Past typical industrial uses, alumina tubes are locating new functions in advanced modern technologies.
In semiconductor construction, ultra-pure alumina tubes are used in chemical vapor deposition (CVD) activators and ion implantation systems, where fragment generation and metal contamination must be lessened.
In clinical tools, biocompatible alumina tubes function as shielding components in medical tools, oral implants, and diagnostic sensing units.
Research study is exploring functionalized alumina tubes with embedded sensors or conductive traces for wise structural tracking in aerospace and power systems.
Additive manufacturing (3D printing) of alumina is becoming a technique to generate complex tube geometries with interior networks or graded structures, allowing next-generation warm exchangers and microreactors.
As markets press towards higher effectiveness, cleaner processes, and greater reliability, alumina ceramic tubes remain to advance as making it possible for elements in the infrastructure of modern innovation.
In recap, alumina ceramic tubes represent a mature yet dynamically advancing class of crafted products, integrating exceptional thermal, mechanical, and electric efficiency in a solitary inorganic conduit.
Their flexibility throughout extreme environments guarantees their ongoing importance in both developed commercial systems and arising state-of-the-art applications.
