1. Material Fundamentals and Crystallographic Characteristic
1.1 Phase Composition and Polymorphic Habits

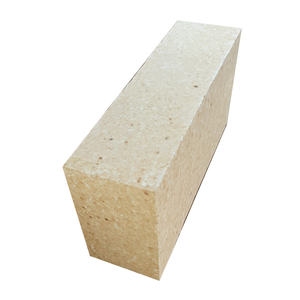

(Alumina Ceramic Blocks)
Alumina (Al Two O ₃), specifically in its α-phase kind, is one of the most commonly made use of technological ceramics because of its excellent equilibrium of mechanical stamina, chemical inertness, and thermal security.
While aluminum oxide exists in a number of metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline framework at heats, identified by a dense hexagonal close-packed (HCP) plan of oxygen ions with light weight aluminum cations occupying two-thirds of the octahedral interstitial sites.
This purchased structure, called corundum, gives high lattice energy and solid ionic-covalent bonding, resulting in a melting point of approximately 2054 ° C and resistance to phase improvement under extreme thermal conditions.
The transition from transitional aluminas to α-Al two O four typically happens above 1100 ° C and is accompanied by significant quantity shrinking and loss of surface, making stage control essential throughout sintering.
High-purity α-alumina blocks (> 99.5% Al ₂ O SIX) exhibit remarkable efficiency in extreme environments, while lower-grade make-ups (90– 95%) may consist of additional stages such as mullite or lustrous grain limit stages for economical applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is greatly affected by microstructural features consisting of grain size, porosity, and grain border cohesion.
Fine-grained microstructures (grain size < 5 µm) generally offer higher flexural stamina (approximately 400 MPa) and enhanced fracture strength contrasted to grainy equivalents, as smaller sized grains hinder crack propagation.
Porosity, also at low degrees (1– 5%), substantially minimizes mechanical toughness and thermal conductivity, necessitating complete densification with pressure-assisted sintering techniques such as hot pushing or warm isostatic pushing (HIP).
Ingredients like MgO are commonly introduced in trace quantities (≈ 0.1 wt%) to prevent abnormal grain growth throughout sintering, ensuring uniform microstructure and dimensional stability.
The resulting ceramic blocks display high solidity (≈ 1800 HV), excellent wear resistance, and low creep rates at elevated temperatures, making them ideal for load-bearing and rough atmospheres.
2. Production and Handling Techniques

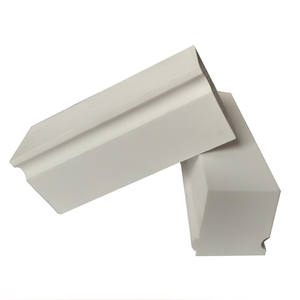

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Approaches
The production of alumina ceramic blocks begins with high-purity alumina powders originated from calcined bauxite using the Bayer procedure or synthesized via rainfall or sol-gel courses for higher pureness.
Powders are milled to attain slim particle size circulation, enhancing packaging thickness and sinterability.
Shaping into near-net geometries is accomplished through various creating methods: uniaxial pushing for simple blocks, isostatic pressing for consistent thickness in complex forms, extrusion for long sections, and slip casting for elaborate or huge components.
Each technique influences green body thickness and homogeneity, which directly effect final buildings after sintering.
For high-performance applications, advanced developing such as tape spreading or gel-casting may be utilized to attain superior dimensional control and microstructural uniformity.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels between 1600 ° C and 1750 ° C enables diffusion-driven densification, where particle necks expand and pores diminish, causing a totally thick ceramic body.
Atmosphere control and accurate thermal accounts are essential to avoid bloating, warping, or differential shrinkage.
Post-sintering procedures include ruby grinding, lapping, and brightening to attain tight tolerances and smooth surface area coatings called for in securing, gliding, or optical applications.
Laser cutting and waterjet machining enable exact personalization of block geometry without inducing thermal anxiety.
Surface therapies such as alumina covering or plasma splashing can additionally improve wear or deterioration resistance in customized service problems.
3. Useful Residences and Performance Metrics
3.1 Thermal and Electric Behavior
Alumina ceramic blocks display modest thermal conductivity (20– 35 W/(m · K)), significantly greater than polymers and glasses, making it possible for reliable warm dissipation in electronic and thermal management systems.
They preserve architectural integrity approximately 1600 ° C in oxidizing ambiences, with low thermal development (≈ 8 ppm/K), adding to excellent thermal shock resistance when properly created.
Their high electric resistivity (> 10 ¹⁴ Ω · cm) and dielectric stamina (> 15 kV/mm) make them suitable electric insulators in high-voltage environments, including power transmission, switchgear, and vacuum cleaner systems.
Dielectric continuous (εᵣ ≈ 9– 10) continues to be steady over a large frequency variety, supporting use in RF and microwave applications.
These homes allow alumina blocks to operate accurately in atmospheres where natural materials would certainly deteriorate or fall short.
3.2 Chemical and Ecological Longevity
One of one of the most useful characteristics of alumina blocks is their outstanding resistance to chemical assault.
They are very inert to acids (other than hydrofluoric and hot phosphoric acids), antacid (with some solubility in solid caustics at elevated temperature levels), and molten salts, making them suitable for chemical processing, semiconductor construction, and pollution control tools.
Their non-wetting behavior with many liquified steels and slags permits usage in crucibles, thermocouple sheaths, and heater cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its energy into clinical implants, nuclear protecting, and aerospace components.
Minimal outgassing in vacuum environments additionally qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor production.
4. Industrial Applications and Technological Combination
4.1 Structural and Wear-Resistant Components
Alumina ceramic blocks work as vital wear elements in markets ranging from extracting to paper manufacturing.
They are used as liners in chutes, hoppers, and cyclones to stand up to abrasion from slurries, powders, and granular products, significantly expanding life span compared to steel.
In mechanical seals and bearings, alumina blocks offer low friction, high hardness, and corrosion resistance, reducing maintenance and downtime.
Custom-shaped blocks are integrated into cutting devices, passes away, and nozzles where dimensional stability and side retention are paramount.
Their light-weight nature (thickness ≈ 3.9 g/cm THREE) likewise adds to energy savings in relocating components.
4.2 Advanced Engineering and Emerging Uses
Beyond standard functions, alumina blocks are significantly employed in sophisticated technical systems.
In electronic devices, they operate as insulating substrates, warm sinks, and laser cavity components due to their thermal and dielectric residential or commercial properties.
In power systems, they work as solid oxide fuel cell (SOFC) components, battery separators, and blend reactor plasma-facing products.
Additive production of alumina by means of binder jetting or stereolithography is arising, allowing complex geometries previously unattainable with traditional forming.
Crossbreed structures integrating alumina with metals or polymers through brazing or co-firing are being developed for multifunctional systems in aerospace and protection.
As material scientific research advancements, alumina ceramic blocks continue to advance from easy structural elements right into active elements in high-performance, sustainable engineering services.
In summary, alumina ceramic blocks stand for a fundamental class of sophisticated porcelains, integrating robust mechanical performance with exceptional chemical and thermal security.
Their adaptability across commercial, digital, and scientific domains emphasizes their long-lasting worth in modern-day engineering and innovation growth.
